Toggled®(120V or 277VAC; 5-Amp) single-gang PIR (Passive infrared) motion sensor switch automatically controls lighting or fan loads by responding to occupancy or vacancy within a room. Dimmable and Non-dimmable Compatible. Configurable Occupancy or Vacancy Control.
Improve home energy efficiency with the wall-mounted Toggled (120V or 277VAC; 5-Amp capacity) single-gang PIR motion sensor light/fan load switch. Capable of automatically controlling loads by responding to configurable occupancy or vacancy within a room. Designed to seamlessly replace a traditional mechanical light switch. Includes matching screwless wall plate. For use with ALL bulb types: LED (Types A, B, and C), Fluorescent and Incandescent. Dimmable and non-dimmable compatibility. Provides wide coverage 150 degree motion detection. Works well with new builds as well as existing system retrofits. Ideal for laundry rooms, garages, basements, entryways and hallways. Includes: One Toggled occupancy/vacancy sensor switch and wall plate (White).
Switch Capabilities:
Configurable Occupancy or Vacancy Control:
- Occupancy Mode: The load turns on automatically when the switch detects occupancy. The load turns off automatically after the room is vacant for the selected timeout.
- Optional manual off
- Vacancy Mode: The load must be turned on manually using the button on the switch. The load turns off automatically after the room is vacant for the selected timeout.
- Optional manual off
Configurable Timeout:
-
- 10 seconds (for testing)
- 3 minutes
- 10 minutes
- 20 minutes
Top Features:
-

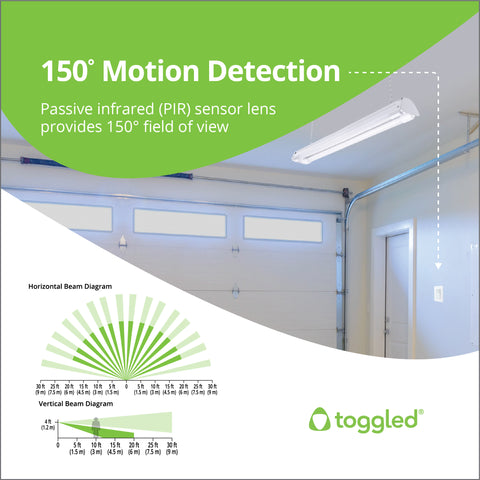

150° motion detection – uses passive infrared (PIR) technology to detect occupancy/vacancy.
-
Designed for use with 120V or 277VAC.
-
Ground wire required when neutral wire is unavailable. for retrofit applications.
-
3-way compatible.
-
Five year limited warranty against defects in manufacturing.
-
Load Capacity up to 5A. Works with up to 600W incandescent, up to 300W LED and CFL, 5-Amp ballasts, or 3-Amp fans.
Share this Product
More from this collection
Customer Reviews

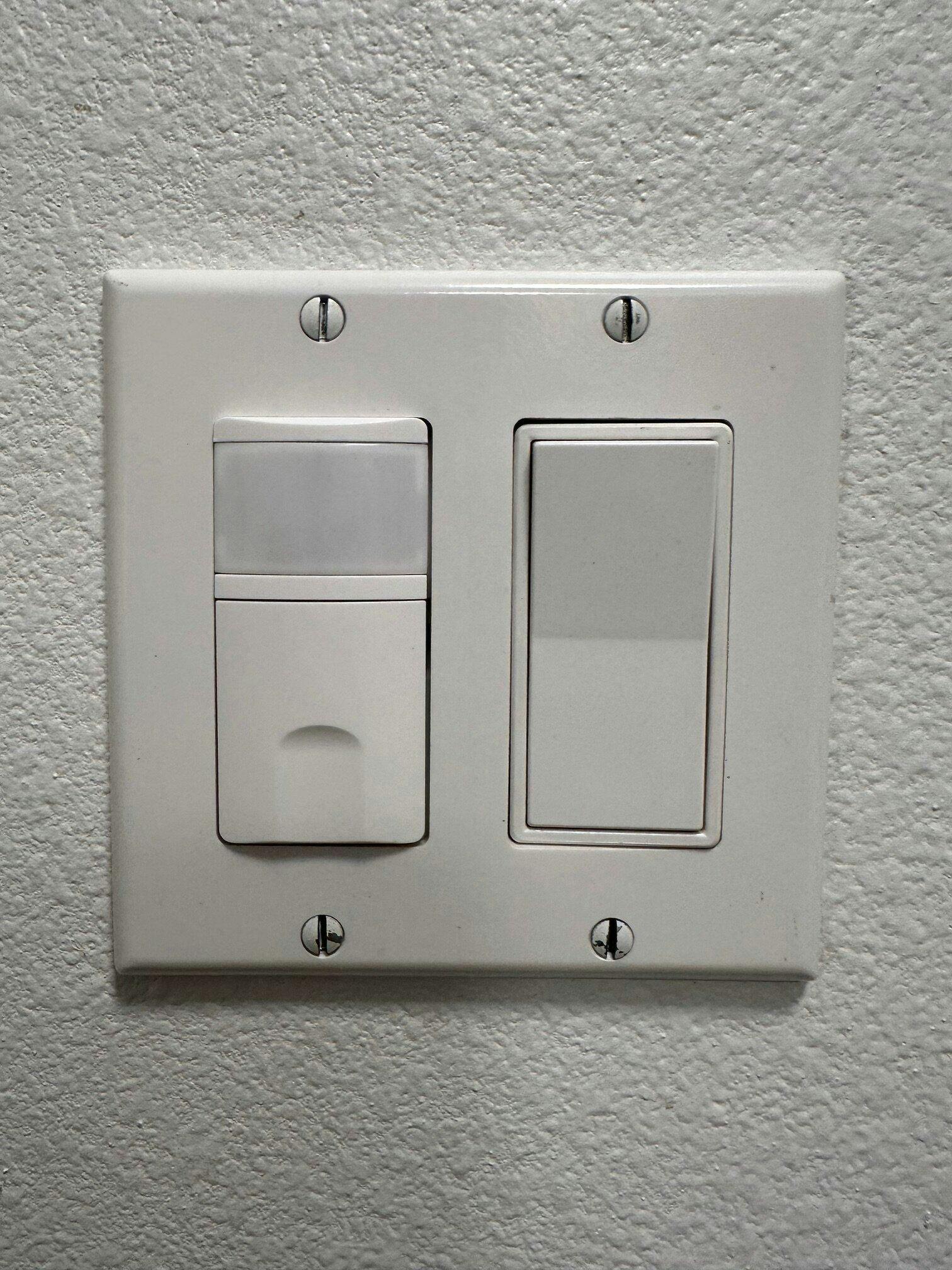

This motion sensor switch is everything as advertised. It can be used for a new installation or it can replace an existing switch. Fluorescent, incandescent, and LED bulbs can be used, so it is designed to be used in any setting. The switch has a manual setting with time delays of 3, 10, and 20 minutes as well as the choice of a vacancy and occupancy mode for maximum flexibility.
I had a few questions on the installation and a minor problem with my delivery, but Heather, in customer service, did an excellent job of walking me through the necessary steps and following up with the information I needed for a successful installation and delivery.
Now that everything is in place and working, I am very happy with this excellent motion sensor switch and the wonderful backup support provided by toggled. My experience has been "A+" and I would highly recommend.
